engraving machine 6090 cnc engraving machine for guitar making

Ask Lasest Price
Brand Name :	AMAN
Certification :	CE
Model Number :	AM6090
Price :	2500-3500usd
Delivery Time :	5-7 work days
Payment Terms :	T/T, WESTERN UNION,Paypal
Supply Ability :	100 set/Mon

Add to Cart

Product Details
Company Profile

engraving machine 6090 cnc engraving machine for guitar making

6090 woodworking CNC machine cnc router

Machine Features:

1) Rotary Attachment with 100mm diameter, for 3D engraving/carving

2) 1.5KW Water Cooling Spindle

3) X Y Z use Germany NEFF Ball Screws

4) Stable NCSTUDIO Operation System

AM6090 Parameter
MAX.X axis travel	600mm
MAX.Y axis travel	900mm
MAX.Z axis travel	80mm
Size	1400mm * 1250mm * 1300mm
Accuracy	0.0254mm
Precision	0.1mm
Table structure	Alloy Aluminum +pvc
Control system	WEIHONG, MACH 3
Inverter	Quartet converter
Drive	Leadshine 542 drive
Motor	Z311, XY450A stepper motor
MAX. moving speed	8000mm/min
MAX. Operating speed	3000-5000mm/min
Main shaft power	800w/1.5KW/2.2KW optional
Spindle speed	24000 rpm/min
Tool DIA. range	3.175mm,6mm
Voltage	110v/220v ; 50hz/ 60hz
Circular Rail models	XY axis 20, Z-axis 16
Transmission	Round rail screw drive
Lead screw Type	1605 of three axis
Instruction	G-code
System	Window XP/Win 7
Optional Device	Spray Cooling System
	Dust Collecting System
	2.2KW/ 3.0KW water-cooling spindle motor
	DSP Hand Held Controller--Offline Control

Tips:

1) Compatible with Mach3 / TYPE3 / ArtCAM / Wentai and other CAD / CAM design software

2) Instruction format: G code (tap, nc, ncc, text)

3) The user must be equipped with a computer

Machine Accessories

1. main machine 1set

2. wrench 2pcs

3. fixture 4pcs

4. auto zero tool 1pcs

5. cutting tool 5pcs

6. power line 1pcs

7. Parallel line 1pcs

8. machine connecting line 1pcs

9. collet: 3.175mm and 6mm

10. axis of rotation 1ps

11.Parts of rotary:(Top)1PCS,(Screw nut)6sets,(cable)1pcs

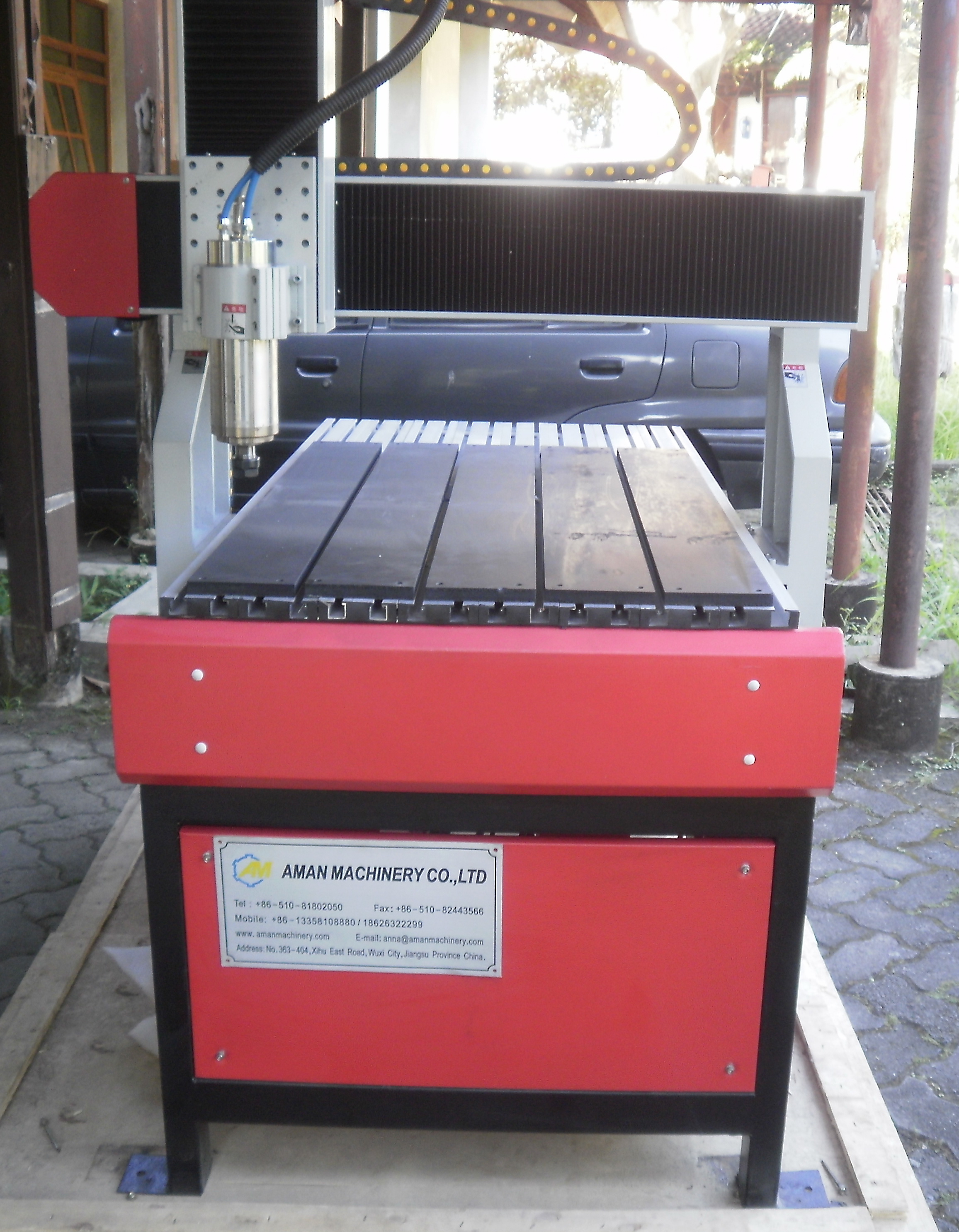

Main machine, Parts, Samples:

engraving machine 6090 cnc engraving machine for guitar making
