Milling and engraving CNC machines allow to realize any of your ideas. All you need is to prepare a model / vector in the program and submit the job to the machine , the rest themselves .

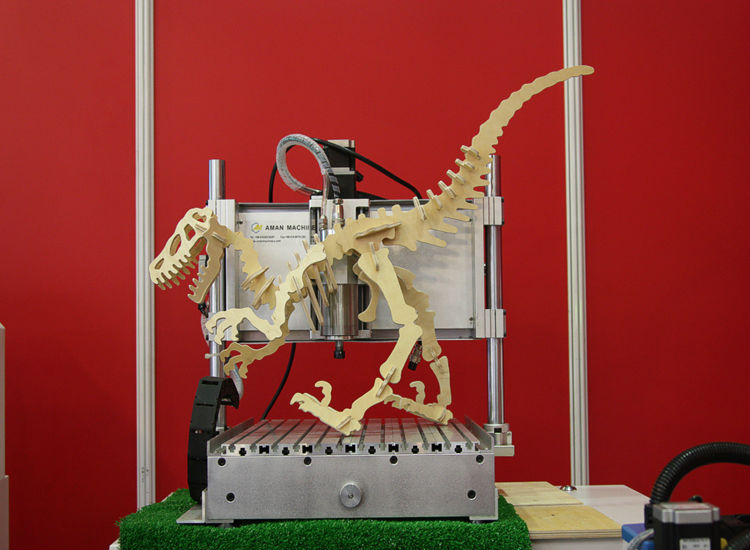

AMAN 3020 4axis 200W - this amateur class machine with table size 300 x 200 mm . Is not very powerful spindle, but c -grade four axes : XYZ + rotator . This machine is a wonderful way combines important features : functionality, compactness , price. It can easily be placed in a small workshop or home. In the first place , will be applicable for engraving (personalization items , creating labels , jewelry , engraving PCBs ) , cutting (letters and labels , signs , models ) , as well as relief 3d- treatment ( three-dimensional objects , reliefs, souvenirs, pad) , drilling .

The main types of treatment :

• etching
• cutting
• 3d- milling
• boring
• milling and engraving on a rotating axis.

Allows you to handle :

• wood
• plastic
• plexiglas
• Chipboard, MDF , plywood
• light metals ( copper, aluminum, brass) .
• and the like .

Main areas of application :

• advertising industry
• creative workshops
• jewelry / designer items
• merchandise
• interior and decor elements

To control the machine will need a computer with LPT-port and the operating system Windows XP.

• technical characteristics
• Working field size 300 x 200 x 60 mm
• 4 axles (XYZ + A-steering axle)
• Spindle power, W / Collet 200W, air cooling, ER11
• Resolution, 0.0125 mm
• Maximum speed (work / feed, mm / min) 2000/3000
• Spindle speed (rev / min) to 8000
• Management system Mach3 interface, Windows 2000/XP
• Compatible software MACH3, ARTCAM, TYPE 3, UCANCAM, KCAM etc.
• Power supply 220V ± 10% 50HZ
• Dimensions (mm) / Weight (kg) 560*470*460mm /45

Details:

1. machine
2. System unit with electronics
3. rotator
4. Workpiece height sensor
5. two key
6. collet
7. milling set
8. Cable to connect the machine to the system unit
9. LPT-cable to connect to your computer
10. Cable to connect the rotator
11. power cable
12. Flashcard
